3D LASER SCANNING



Accurate measurements have always been a crucial element in the design process, from initial design studies through final construction documents. This is especially true for as-built surveys that require a detailed survey before design work commences. In the past, measurements were typically established using the total station.



Now 3D laser scanning provides a better way to quickly and accurately capture as-built conditions for building documentation. 3D laser scanning captures as-built conditions rapidly and precisely. Once assembled, the scanned images reveal building relationships in ways difficult to imagine, let alone measure. ADB3D provides detailed spatial information to architects, design professionals, engineers, and builders.



Laser scanning is essentially the precise capture of three-dimensional information reflected from an object or surface to a light sensor. It creates a 3D construct called a “point cloud” made from multiple scans that have been unified through a process of “registration”

Once the point cloud data is consolidated, traditional deliverables, 2d plans, elevations, and sections can be readily extracted. BIM models, fly-throughs  and point clouds are used for contextual purposes.



Precise measurements can be taken between individual scan points, edges, and planes. Laser scanning reveals deformation from poor construction or the cumulative effects of time. After the scans are registered, a three-dimensional database is established that can be used throughout the building’s lifecycle, or to aid in reconstruction should damage occur in the future.



remarkably sharp and descriptive photographic data is fused with the point cloud and can be easily viewed as dynamic panoramas. These images are dimensional and can be annotated and modeled to suit your project.





FOR MORE INFORMATION ABOUT OUR SERVICES, CALL US TODAY:

 0401 143 810

ABOUT US

ADB3d Pty is a small firm in Sydney, Australia.



run by a group of SURVEYING professionals.



Specialising in 3d laser scanning, high definition surveys, 3d surveying,  AS-Builts and "BIM" Revit Models.



We provide 20 yEARs of experience and extensive knowledge of the Surveying Industry.



ADB3d empowers you as an architect, engineer, or contractor by letting you have better-coordinated as-builts via reality capturing technology. Our team of experts capture your existing spaces and create building information models with a quick turn around.



If you are frustrated with old methods of capturing existing spaces, we want to help.



AS A SMALL BUSINESS OUR AIM IS TO TAKE LASER SCANNING ACROSS MANY PLATFORMS WITHIN AEC AND PUSH THE BOUNDARIES OF VDC, CREATING A DIGITAL TWIN WITH WHAT WE SCAN AND MODEL.



all our work is completed in house (we do not outsource) we take SERIOUS pride in our work and only deliver the highest quality to our clients.

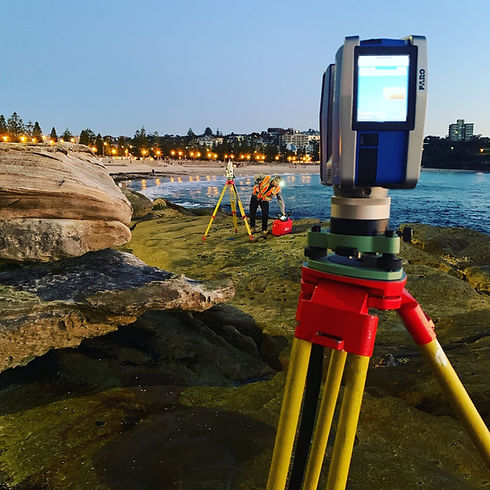

Our X330 FARO provides scanning results even in challenging environments, narrow job-sites, dusty or humid areas, in rain or direct sunlight applications. An on-site compensation tool allows data quality optimization on-site. Integrated GPS & GLONASS receiver enable easy positioning. HD photo resolution ensure true-to-detail scan results with high data quality.

  • Distance accuracy up to ± 1  mm

  • Range from 0.6m up to 330m

  • IP Class 54

  • On-Site Compensation

  • Rescanning of distant targets in higher resolution

  • Digital hashing function

  • Retake Photo Option

  • Acessory Accessory Bay

  • HD photo overlay up to 165 megapixel color

3d Laser  Scanning

Our team uses laser scanning technology with high resolution fully colored panoramic images. This point cloud data can then be transferred to a number of CAD, BIM applications.  The accuracy of these scans is unprecedented.

Revit Modeling

Let the team at ADB3d convert your as-builts into an actual Building Information Model that can be further documented for permitting or 3D Coordination.  Spend more time designing and building.

Model Renders

We produce stunning, high-quality renderings from designs and models to deliver to our clients. Model Rendering creatively displays ambient light, realistic materials and textures from Render the model to create a photorealistic image.

HERITAGE projectS

          LOD500

COMMERICAL PROJECTS

             LOD 300

3D LASER SCAN  FLYTHROUGHS
